Taking Passion to
the Next Level

Music has the power to Connect & Unite.Being able to Play Music is a special Feeling. Some people express themselves through words and others through their Instrument. But it takes High-Quality Instrument to produce the True Sound of Music.
At Yamaha, our Endeavour is to consistently provide products that exceeds the expectations of our customers. Yamaha Music India Factory in Chennai is setup to produce Musical Instruments locally without compromising on Quality, Durability & Reliability.

General Specifications

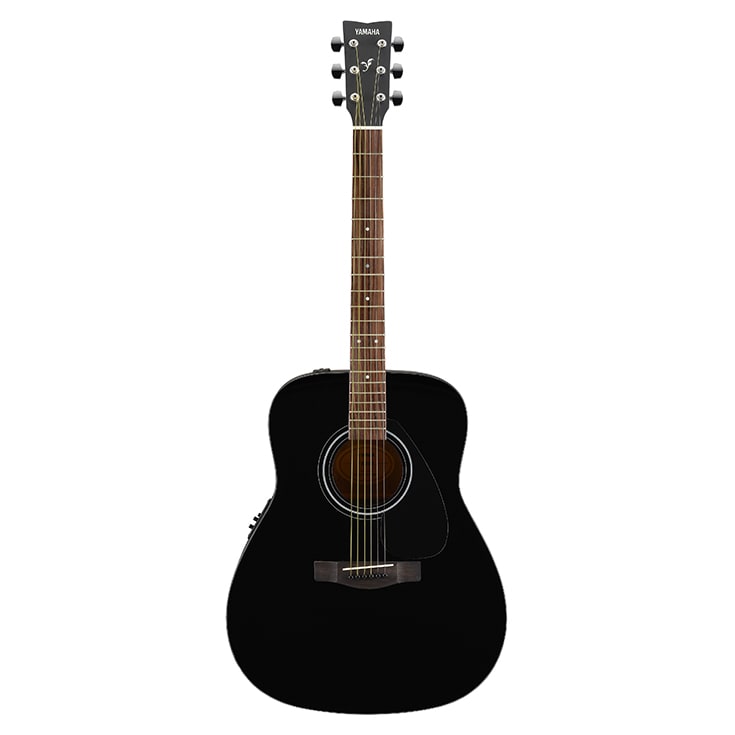

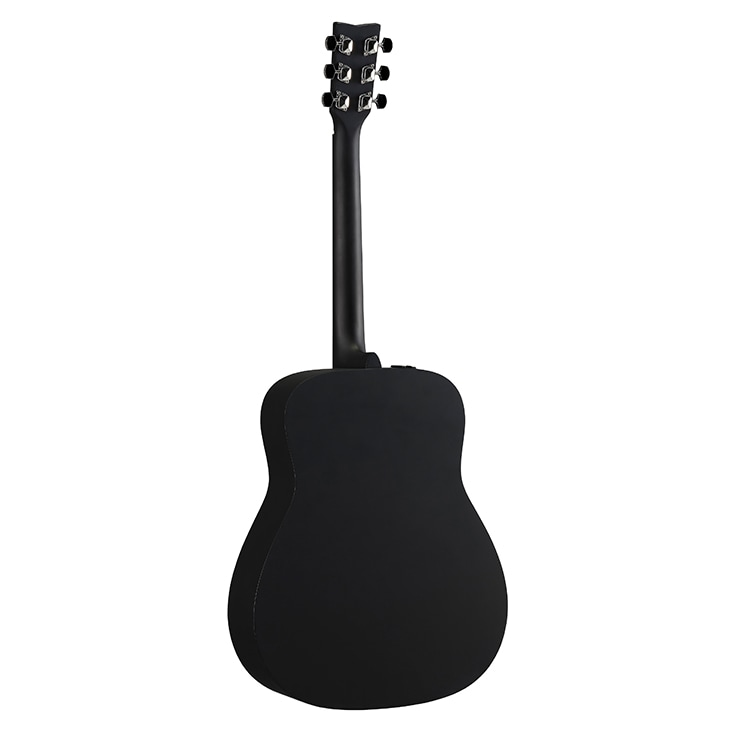

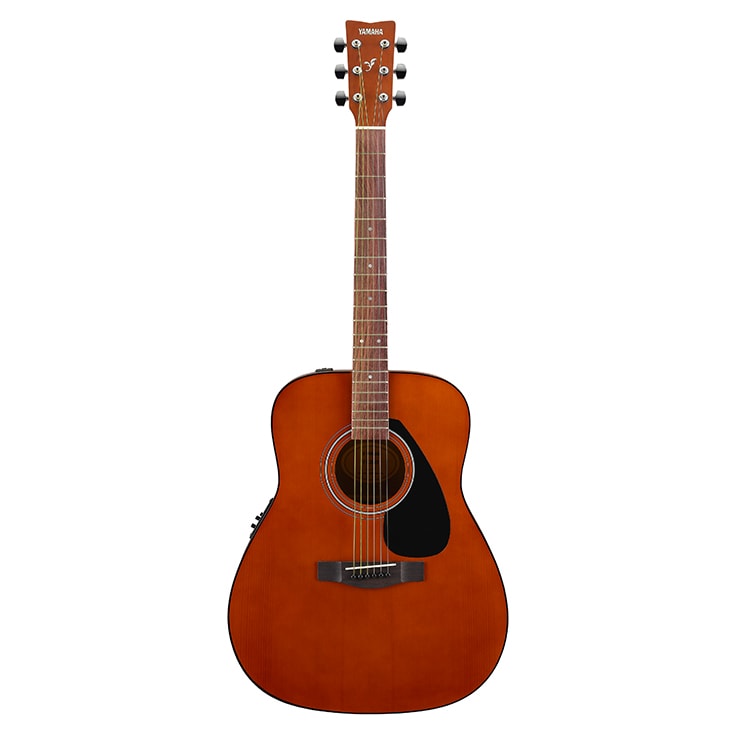

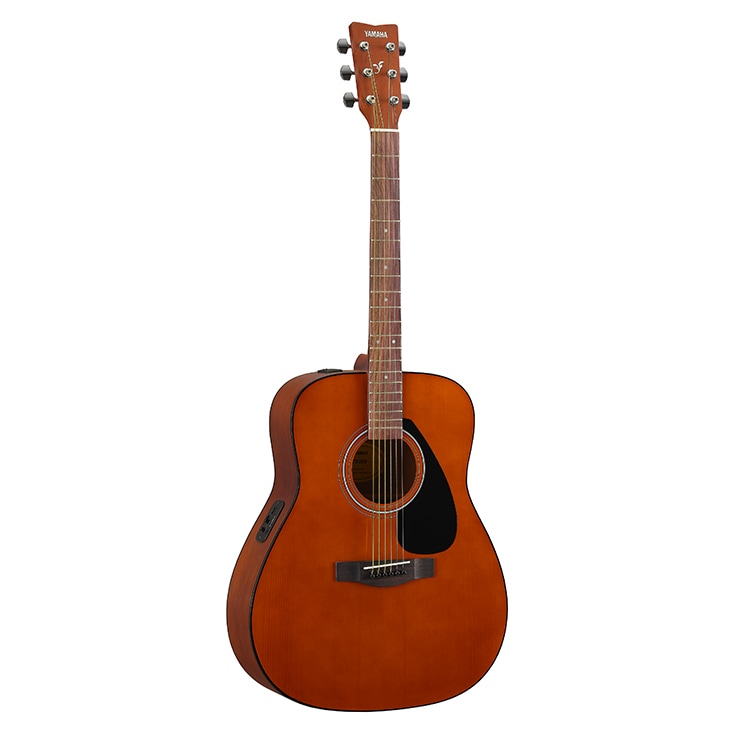

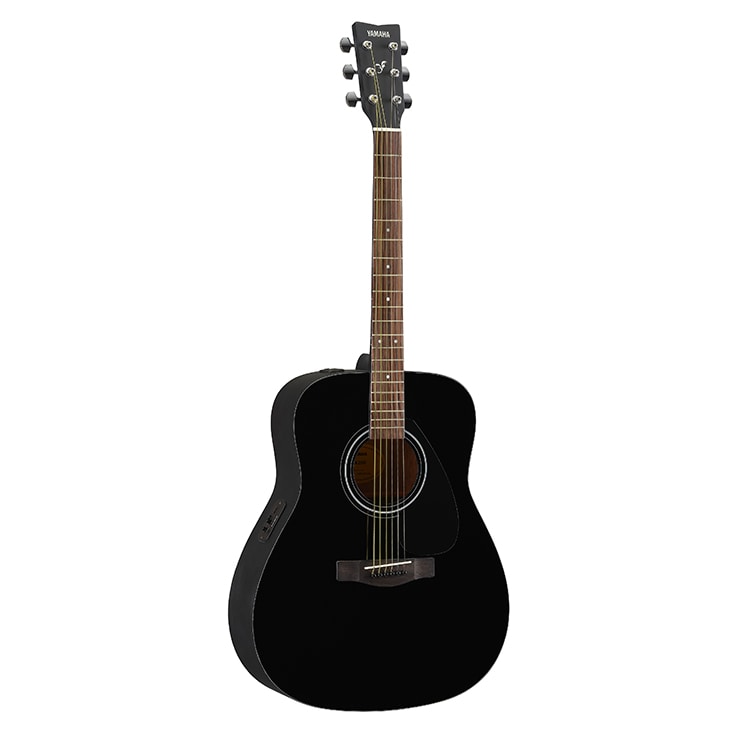

Body Shape Traditional Western
Scale Length 634mm (25”)
Body Length 505mm (19 7/8")
Total Length 1029mm (40 1/2")
Body Width 412mm (16 1/4")
Body Depth 96-116mm (3 13/16" - 4 9/16")
Nut Width 43mm (1 11/16”)
String Spacing * 10.0mm
Top Material Spruce
Back Material Tropical Tonewood **
Side Material Tropical Tonewood **
Neck Material Tropical Tonewood **
Fingerboard Material Rosewood
Fingerboard Radius R400mm (15 3/4")
Bridge Material Rosewood
Nut Material Urea
Saddle Material Urea
Bridge Pins Black ABS
Tuners Covered Chrome
Body Binding Black
Soundhole Inlay Black + White
Pickguard Black
Body Finish Top: Gloss
Side/Back : Matt
Neck Finish Matt
Electronics SYSTEM68 + ART 1way Pickup
Controls Vol/Tone/Tuner
Connections LINE OUT
Strings .012/.016/.025(or.024)/.033(.032)/.043(.042)/.053(.052)
Accessories Hex Wrench, 2 x AA Batteries
Case None

* Measured from the center of one bridge pin to the center of the next bridge pin.
** To minimize waste and support sustainable procurement, various species of tropical tone woods are used based on availability

General Specifications

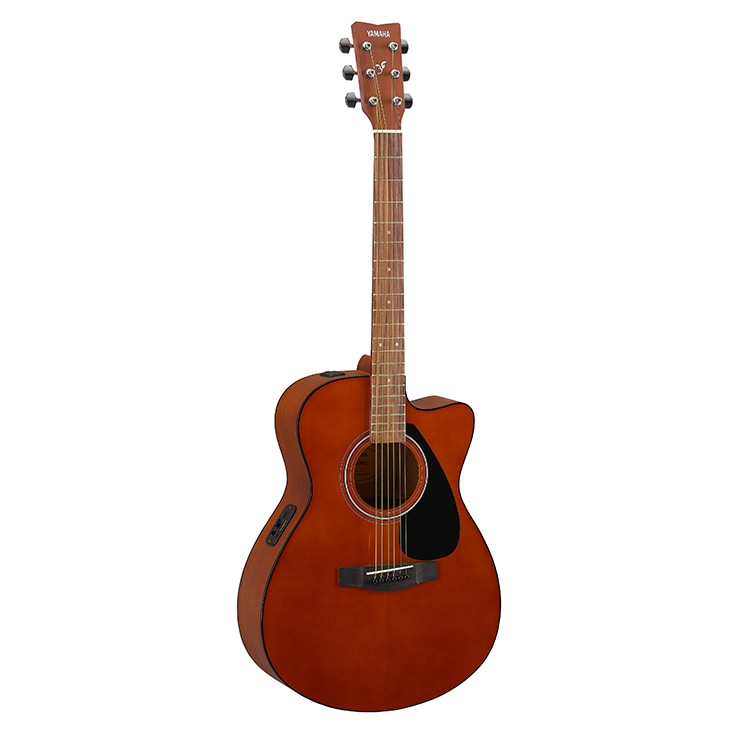

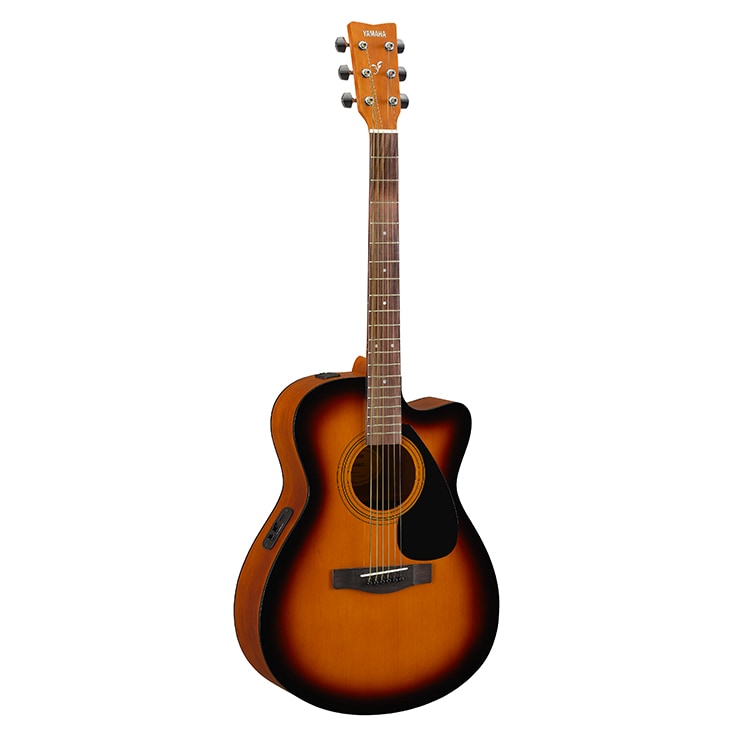

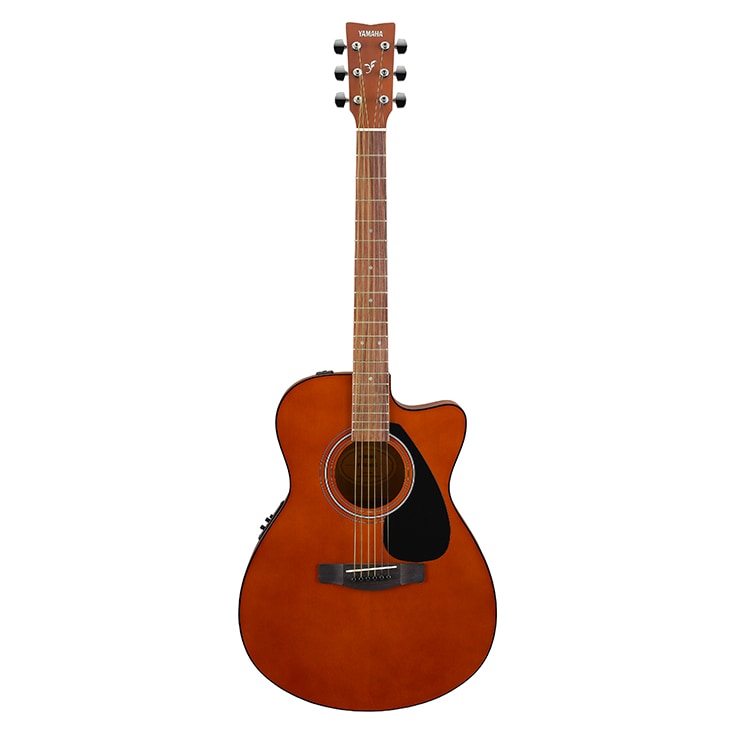

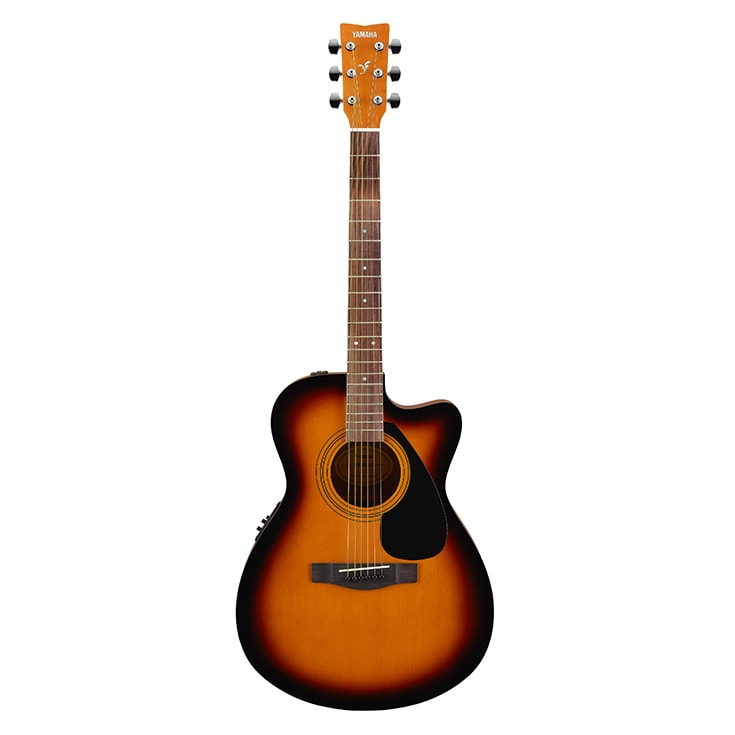

Body Shape Concert Cutaway
Scale Length 634mm (25”)
Body Length 497mm (19 9/16")
Total Length 1021mm (40 3/16")
Body Width 380mm (14 15/16")
Body Depth 96-116mm (3 13/16" - 4 9/16")
Nut Width 43mm (1 11/16”)
String Spacing * 10.0mm
Top Material Spruce
Back Material Tonewood **
Side Material Tonewood **
Neck Material Tonewood **
Fingerboard Material Rosewood
Fingerboard Radius R400mm (15 3/4")
Bridge Material Rosewood
Nut Material Urea
Saddle Material Urea
Bridge Pins Black ABS
Tuners Covered Chrome(TM-14P)
Body Binding Black(Black and Cream for BL color variation)
Soundhole Inlay Black + White
Pickguard Black
Body Finish Top: Gloss
Side/Back : Matt
Neck Finish Matt
Electronics SYSTEM68 + ART 1way Pickup
Controls Vol/Tone/Tuner
Connections LINE OUT
Strings .012/.016/.025(or.024)/.033(.032)/.043(.042)/.053(.052)
Accessories Hex Wrench, 2 x AA Batteries
Case None

* Measured from the center of one bridge pin to the center of the next bridge pin.
** To minimize waste and support sustainable procurement, various species of tropical tone woods are used based on availability
