| General Specifications | General | Construction | - | - | - | - | - | - | - | - | - | - | Set-in | Set-in |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Scale Length | - | - | - | - | - | - | - | - | - | - | 24-3/4" (628.6mm) | 24-3/4” (628.6mm) | ||
| Body | Body Materials | - | - | - | - | - | - | - | - | - | - | Maple / Nato or Mahogany | Nato or Mahogany | |
| Body Finish | - | - | - | - | - | - | - | - | - | - | Gloss Polyurethane | Gloss Polyurethane | ||
| Neck | Neck Materials | - | - | - | - | - | - | - | - | - | - | Nato or Mahogany | Nato or Mahogany | |
| Neck Finish | - | - | - | - | - | - | - | - | - | - | Gloss Polyurethane | Gloss Polyurethane | ||
| Fingerboard Materials | - | - | - | - | - | - | - | - | - | - | Rosewood | Rosewood | ||
| Fingerboard Radius | - | - | - | - | - | - | - | - | - | - | 13-3/4" (350mm) | 13-3/4” (350mm) | ||
| Fret wire | - | - | - | - | - | - | - | - | - | - | Medium | Medium | ||
| Number of frets | - | - | - | - | - | - | - | - | - | - | 22 | 22 | ||
| Nut materials | - | - | - | - | - | - | - | - | - | - | Urea | Urea | ||
| Neck Width @ 0 Fret / 12th Fret | - | - | - | - | - | - | - | - | - | - | 43.0 / 52.5 mm | 43.0 / 52.5 mm | ||
| Thickness @1st Fret / 12th Fret | - | - | - | - | - | - | - | - | - | - | 20.0 / 22.6 mm | 20.0 / 22.6 mm | ||
| Electronics | Neck Pickup | - | - | - | - | - | - | - | - | - | - | VH3n: Humbucker / Alnico V | HH3n: Humbucker / Ceramic | |
| Middle Pickup | - | - | - | - | - | - | - | - | - | - | - | - | ||
| Bridge Pickup | - | - | - | - | - | - | - | - | - | - | VH3b: Humbucker / Alnico V | HH3b: Humbucker / Ceramic | ||

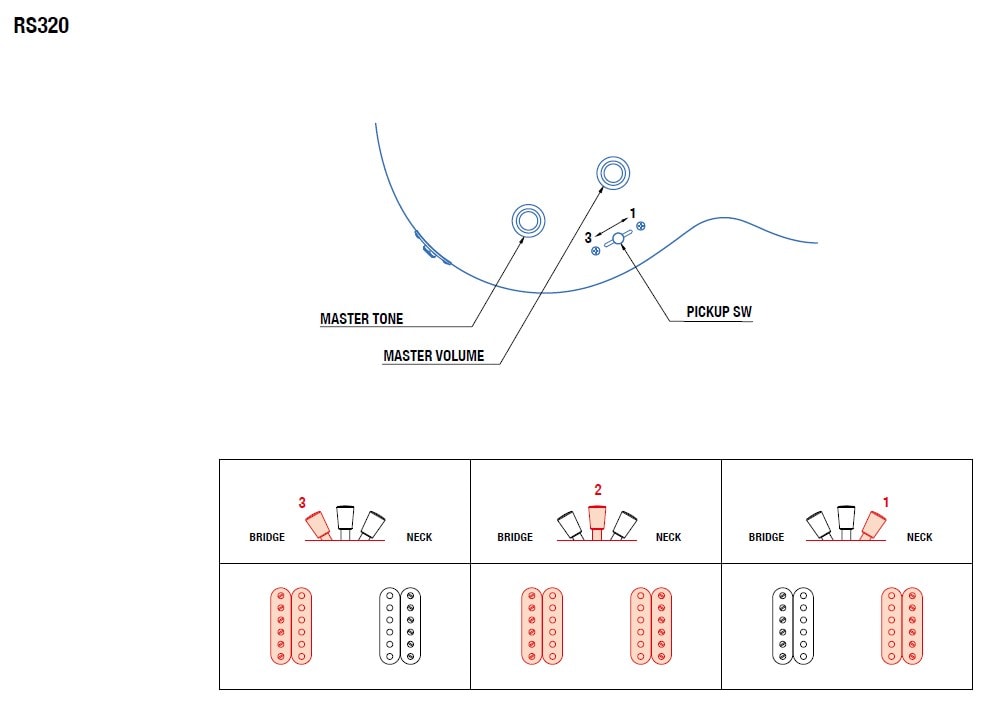

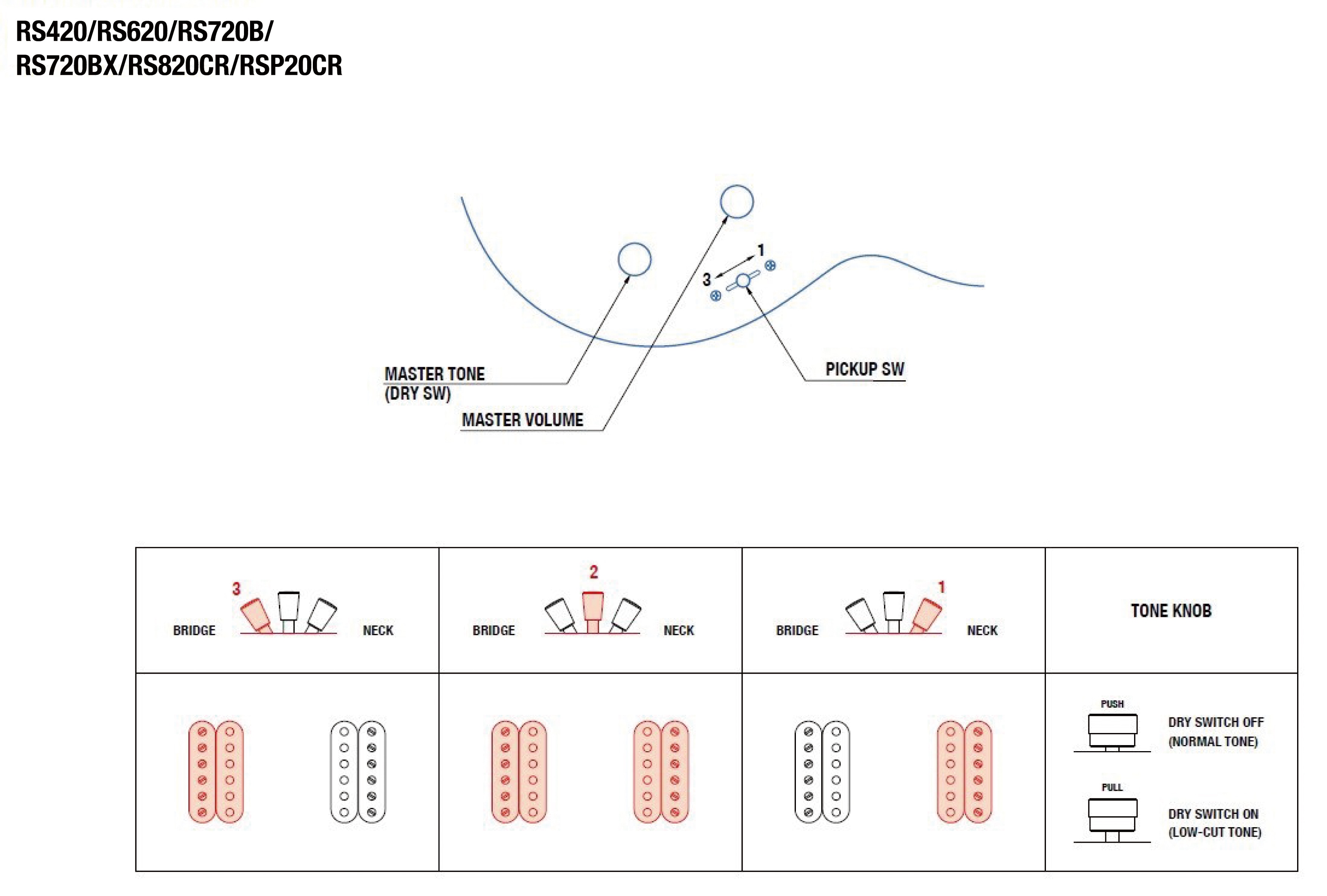

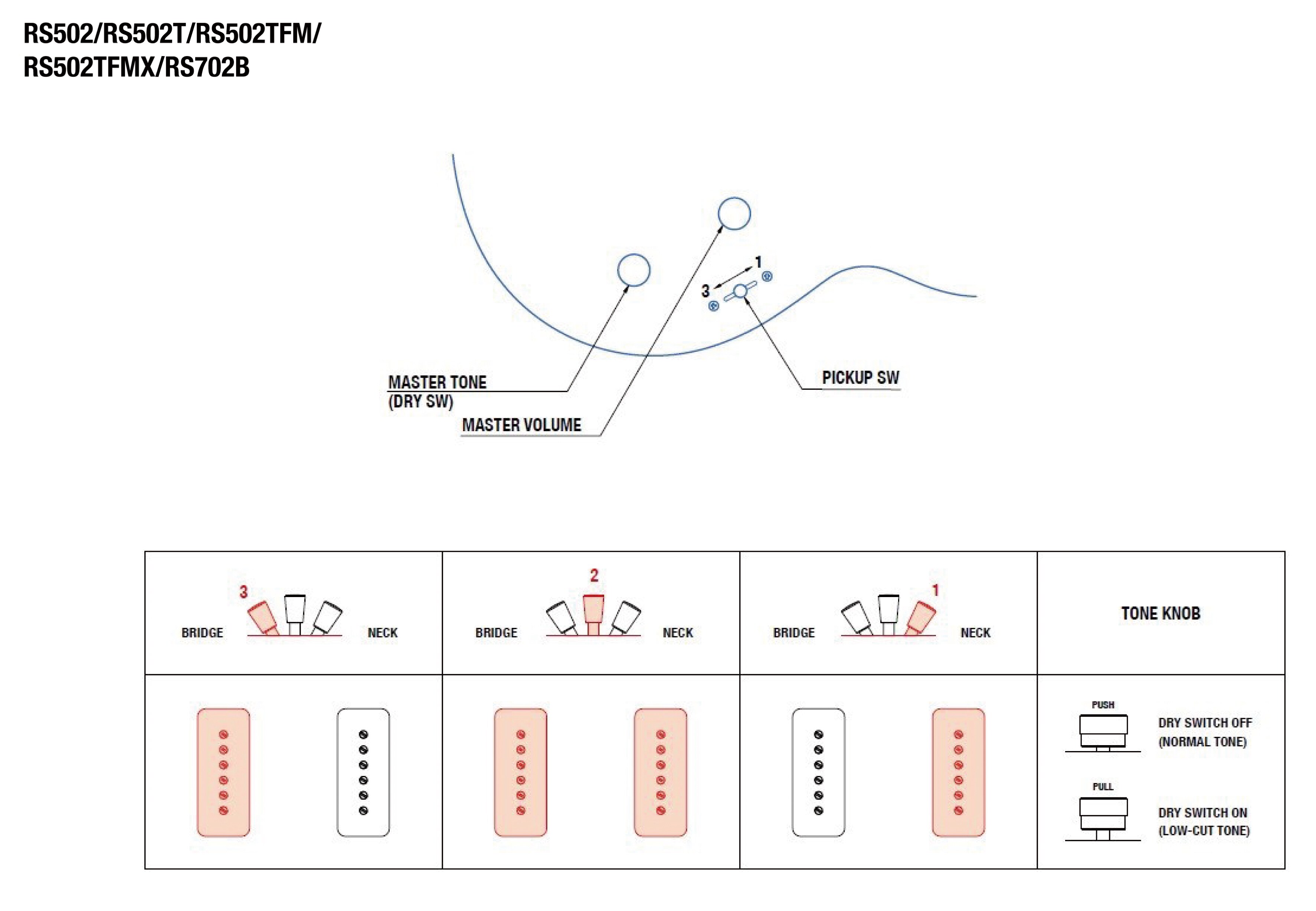

| Controls | - | - | - | - | - | - | - | - | - | - | Master Volume, Master Tone (Push-Pull "Dry Switch") | Master Volume, Master Tone | ||
| Pickup Switch | - | - | - | - | - | - | - | - | - | - | 3-Position Lever Switch | 3-Position Lever Switch | ||
| Hardware | Bridge | - | - | - | - | - | - | - | - | - | - | Tune-O-Matic | Tune-O-Matic | |
| Tremolo Arm | - | - | - | - | - | - | - | - | - | - | - | - | ||
| String spacing | - | - | - | - | - | - | - | - | - | - | 10.5mm | 10.5mm | ||
| Tailpiece | - | - | - | - | - | - | - | - | - | - | Stop Tailpiece | Stop Tailpiece | ||
| Tuning Machines | - | - | - | - | - | - | - | - | - | - | Die-Cast | Die-Cast | ||
| Pickguard | - | - | - | - | - | - | - | - | - | - | 3-Ply Black | 1-Ply Black | ||
| Others | String gauge | - | - | - | - | - | - | - | - | - | - | Elixir Electric Nickel Plated Steel with Nanoweb Coating / 0.010-0.046 | Elixir Electric Nickel Plated Steel with Nanoweb Coating / 0.010-0.046 | |
| Case | - | - | - | - | - | - | - | - | - | - | - | - | ||
| Special Features | - | - | - | - | - | - | - | - | - | - | - | - | ||
