Discontinued

MG Series (C Models)

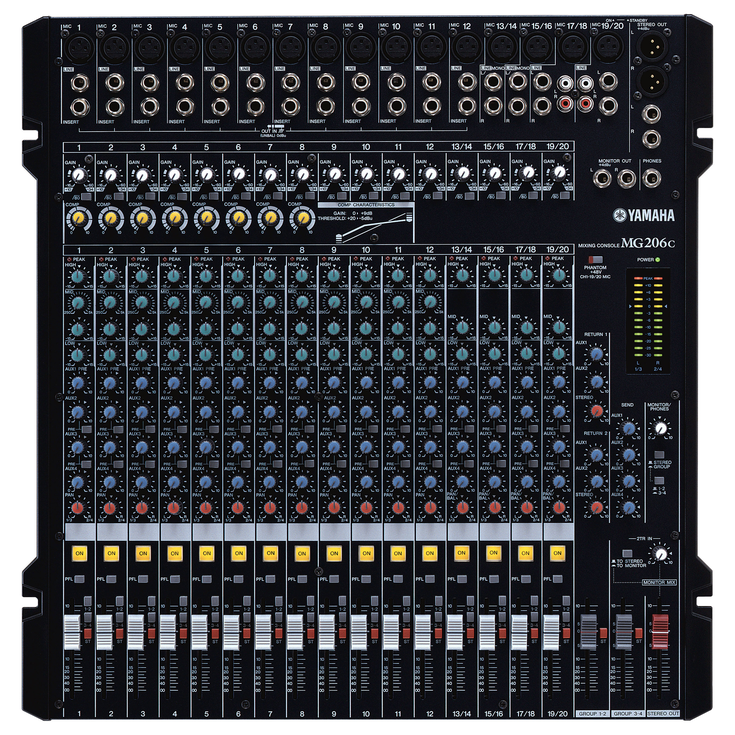

MG206C

Extended capacity, versatility and control for stage with sixteen microphone inputs.

  • 20 Input channels (16 Mics + 4 Stereo line inputs)
  • 3 band Mid-sweep EQ (Ch 1-12), 3 band EQ (Ch 13/14-19/20)
  • 6 busses (Stereo + 4 groups), 4 Aux sends, 2 Stereo Aux return
  • Neutrik™ XLR Connectors
  • Light weight (6.0 kg)
  • Rack Mountable

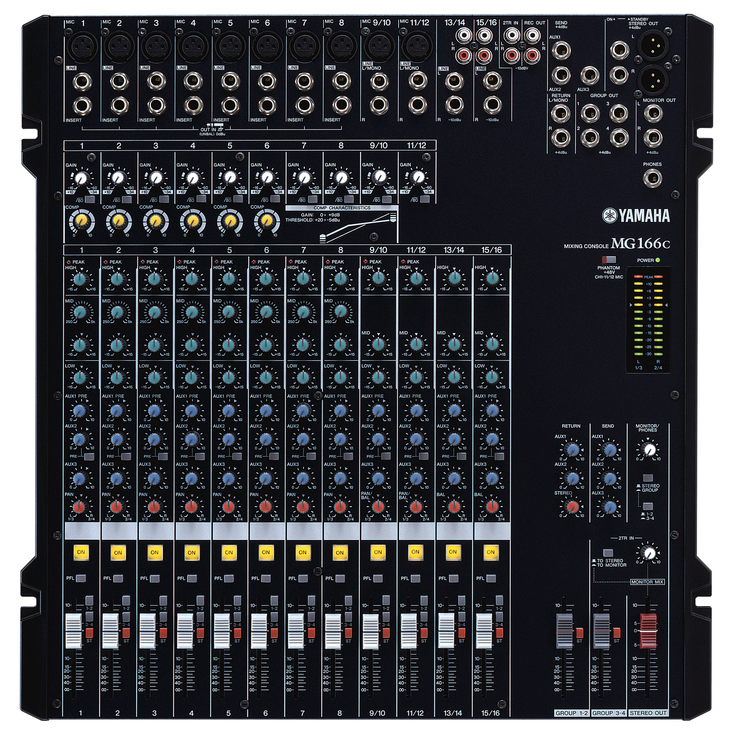

MG166C

A six-bus format offers extra options for monitoring and live recording.

  • 16 Input channels(10 Mics + 4 Stereo line inputs)
  • 3 band Mid-sweep EQ (Ch 1-8), 3 band EQ (Ch 9/10-15/16)
  • 6 busses (Stereo + 4 groups), 3 Aux sends, 1 Stereo Aux return
  • Neutrik™ XLR Connectors
  • Light weight (5.3 kg)
  • Rack Mountable

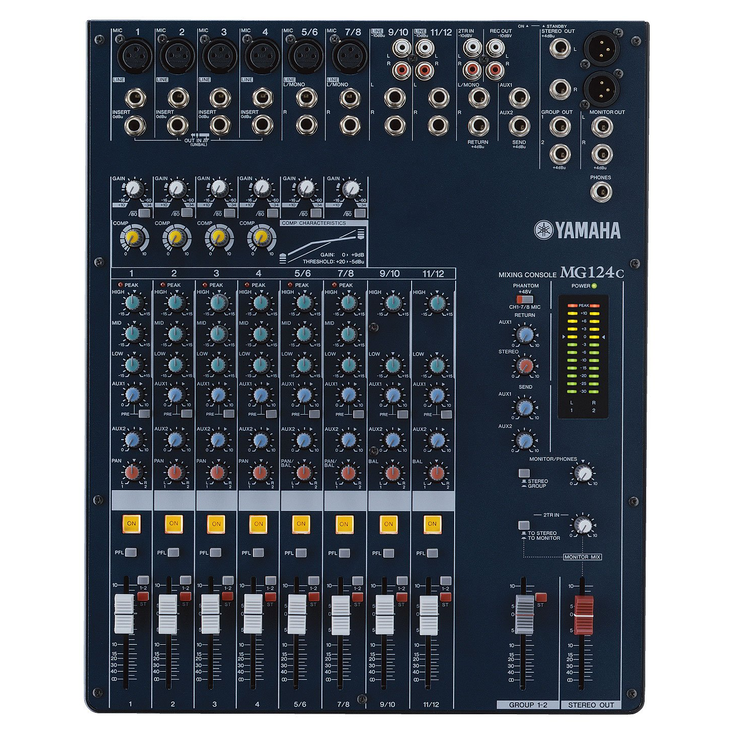

MG124C

Stunning MG-series sound plus and extra margin of input and signal-routing capacity.

  • 12 Input channels (6 Mics + 4 Stereo line inputs)
  • 3 band EQ (Ch 1-7/8), 2 band EQ (Ch 9/10-11/12)
  • 4 busses (Stereo + 2 groups), 2 Aux sends, 1 Stereo Aux return
  • Neutrik™ XLR Connectors
  • Light weight (3.0 kg)

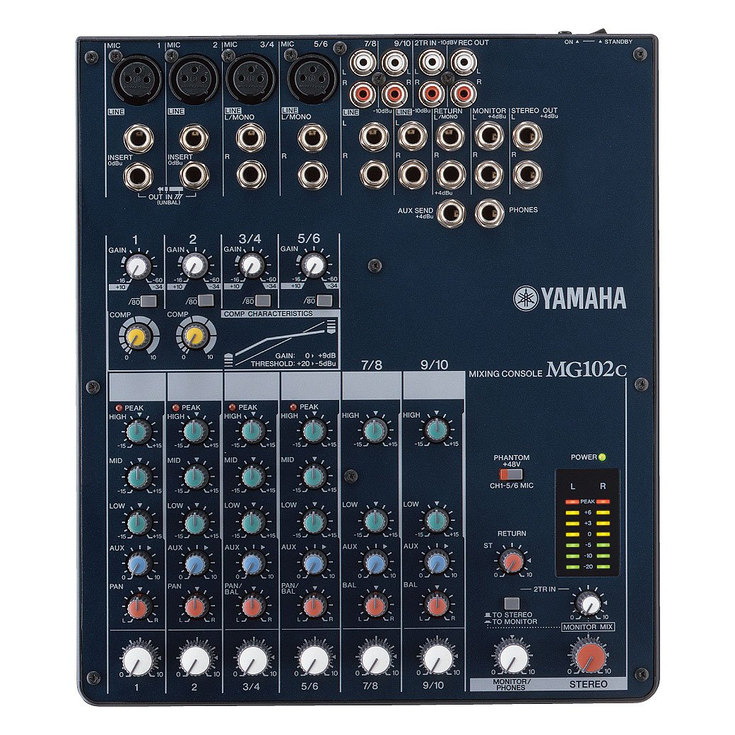

MG102C

Extraordinary sonic quality plus channel compressors in a small-but-powerful utility mixer.

  • 10 Input channels (4 Mics + 4 Stereo line inputs)
  • 3 band EQ (Ch 1-5/6), 2 band EQ (Ch 7/8-9/10)
  • 3 busses (Stereo + Aux), 1 Aux send, 1 Stereo Aux return
  • Neutrik™ XLR Connectors
  • Light weight (1.5 kg)

Small Mixers with improved utility

Whether you have a mixing applications that involves only a few channels, or up to 32 inputs with substantial signal routing versatility, Yamaha's MG-series offers a console that will give you the capacity, control, and performance you deserve. All models are remarkably compact and lightweight for superior handling and portability, but absolutely no compromises have been made in terms of features, performance, or durability. The MG mixers offer an extraordinary blend of technology: some inherited from professional Yamaha mixing consoles you're likely to see in distinguished halls throughout the world, and some developed specifically to deliver optimum performance in the MG-console format. In either case these performance-packed mixers are founded on a world-spanning network of human and technological resources that crystallize to deliver features that really matter, and sound that is undeniably superior.

* Specifications are subject to change without notice. The colors and finishes shown may vary from those on the actual products.
