Indoor Stages / Houses of Worship [Mid-size]

PA system featuring a versatile digital mixer with a user-friendly interface and suitable power for live band music performance on a mid-sized outdoor stage for an audience of up to 300 people depending on seating/venue size.

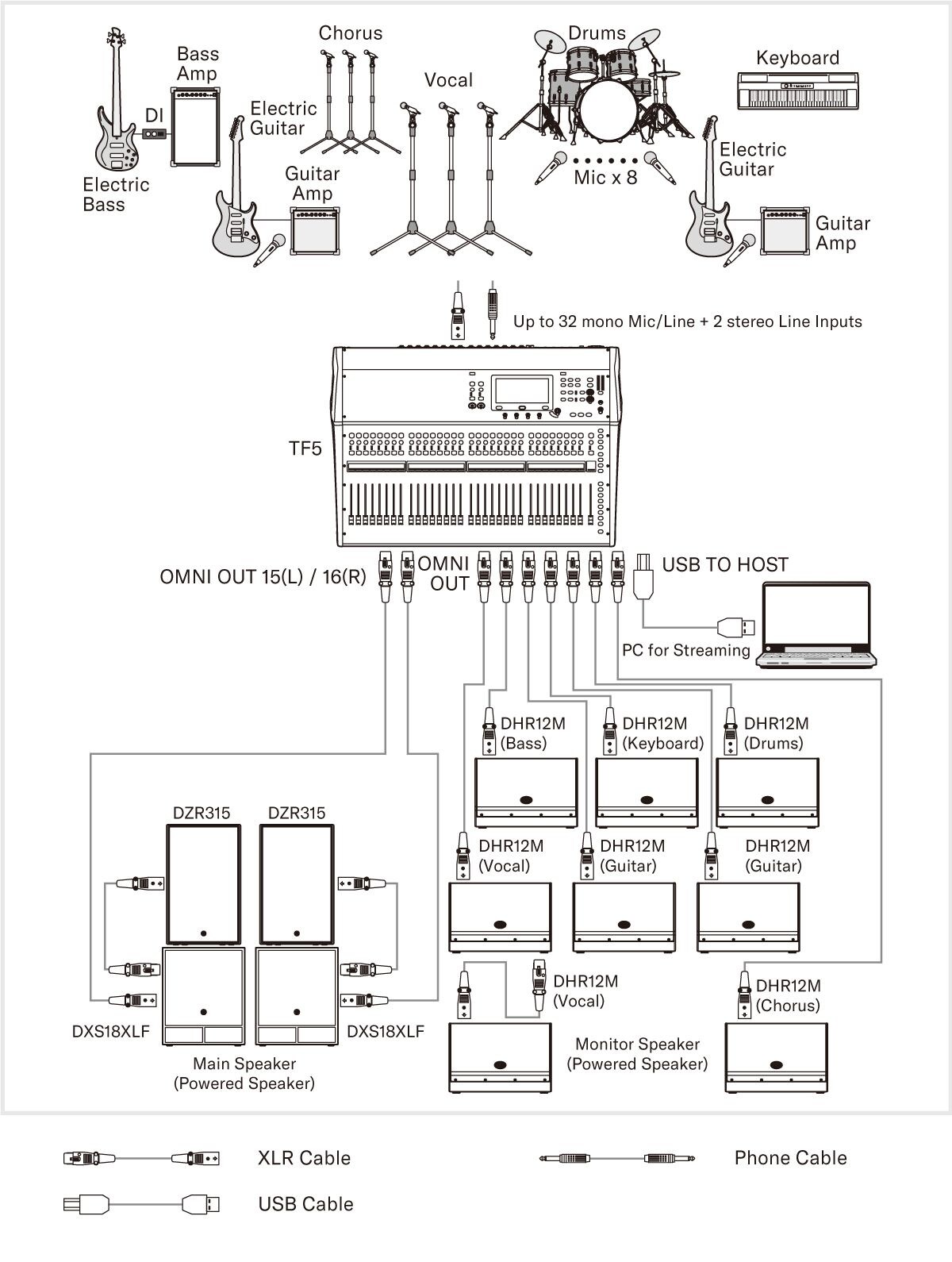

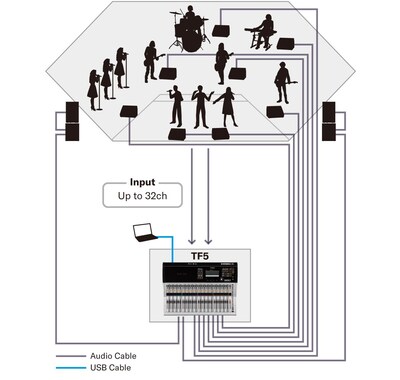

- The system consists of a digital mixing console, 2x powered loudspeakers, 2x subwoofers for front of house, and 6x powered speakers for monitoring.

- Digital mixer features an intuitive user interface optimized by touch-panel operation. [Mixing console TF5]

- Wireless mixing with iPad app TF StageMix™, allows remote mixing from audience seating, in front of floor monitors, or any other listening position. [Mixing console TF5]

- Versatile multi-purpose 2-way active loudspeaker system featuring D-CONTOUR intelligent dynamic control feature for consistent clarity at any output level. [Powered loudspeaker DSR115]

- Powerful 18" subwoofers with versatile DSP technologies that ensure clearly defined low frequencies regardless of output power. [Powered subwoofer DXS18]

- Floor monitor speakers feature an optimized 50° wedge angle. [Powered loudspeaker DBR12]

Category Model Name Qty
Mixing Console TF5 1
Power Amplifier - -
Main Speaker DSR115(Powered Speaker) 2
Subwoofer DXS18(Powered Speaker) 2
Monitor Speaker DBR12(Powered Speaker) 8



QuickPro Presets™ Provide Instant Access to Pro Sound Setups

QuickPro Presets™ Provide Instant Access to Pro Sound Setups

The Yamaha R&D team developed a selection of optimized QuickPro Presets™ for a wide variety of microphones and output equipment by working in collaboration with well-respected engineers and major manufacturers such as Audio-Technica, Sennheiser, Shure and Ultimate Ears. With these practical presets even the novice engineer can get very close to the ideal sound, while experienced engineers will appreciate the significant time savings. For input channels we prepared more than 100 presets that range from vocals to drum sets. All the presets were precisely tuned by using a wide range of actual microphones, instruments. For output channels we developed presets for a variety of speaker systems and in-ear monitors such as Ultimate Ears with several variations to match different environments and room sizes. All of these can be used as is when time is tight, but they are also great starting points for manual fine tuning. Setups created from the presets or from scratch can be saved as additional presets too. The 1-knob EQ and 1-knob COMP can be used with QuickPro Presets™ providing a super-streamlined way to tweak your sound. In addition to the onboard presets, new QuickPro Presets™ will be added to the Yamaha Pro Audio website, so be sure to check for updates.

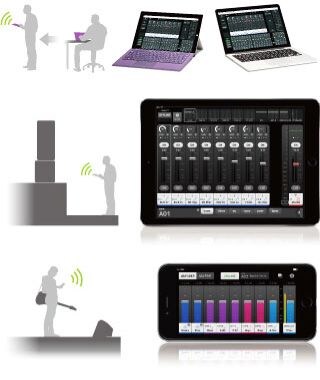

Application that work seamlessly with the console

Application that work seamlessly with the console

- TF Editor

TF Editor application for Windows and Mac computers provides a complete interface for offline editing and setup of TF consoles, with scene and preset management capabilities plus convenient keyboard entry of channel names.

- TF StageMix

TF StageMix is an iPad application that provides wireless control of TF series consoles, allowing remote mixing from audience seating, in front of floor monitors, or any other listening position. It can also be used at the console as an extension of the console’s own interface.

- MonitorMix

MonitorMix application allows individual wireless AUX mixing from up to 10 iPad, iPhone, iPod touch or Android devices simultaneously.

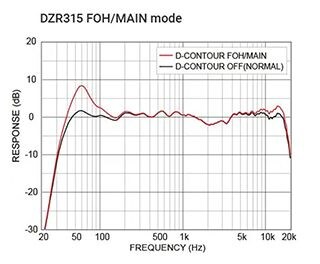

Intelligent Dynamic Control

Intelligent Dynamic Control

D-CONTOUR is a multi-band dynamic processor featuring intelligent sensing. Normally a compressor is used to boost SPL, but this would effect the entire audio bandwidth resulting in a constricted feel to the sound. D-CONTOUR works by constantly monitoring the output of multiple frequency bands, feeding the data back into the intelligent sensing system. This system then calculates the optimum EQ adjustments for each frequency band, resulting in maximum SPL while maintaining musicality. These EQ adjustments are performed in a highly intelligent manner, linked directly to the auditory response of the human ear. Hence the DSR Series can continuously deliver sound that is natural, clear and powerful - regardless of volume. D-CONTOUR can be turned on or off depending on the acoustic environment and type of sound desired.



33 motor faders (32 channels + 1 master)

48 input mixing channels (40 mono + 2 stereo + 2 return)

20 Aux (8 mono + 6 stereo) + Stereo + Sub buses

8 DCA groups with Roll-out

32 analog XLR/TRS combo mic/line inputs + 2 analog RCA pin stereo line inputs

16 analog XLR outputs

34 x 34 digital record/playback channels via USB 2.0 + 2 x 2 via a USB storage device

8 Effects and 10 GEQ

QuickPro Presets™ Provide Instant Access to Pro Sound Setups

1-knob COMP™ & 1-knob EQ™: One Knob to Dial In the Ideal Sound

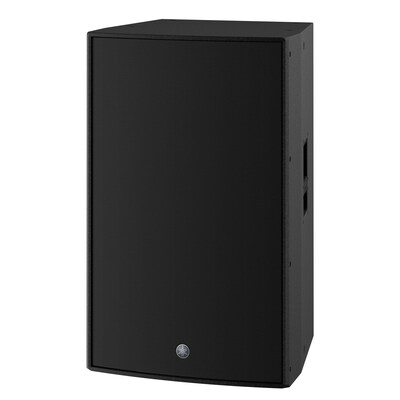

15" 2-way powered loudspeaker

1500W Class-D amplifiers

Maximum 136dB SPL (peak)

D-CONTOUR multi band dynamic processor

Compact and lightweight (28.0kg / 62lbs)

Durable wood enclosure with LINE-X® finish

Stand and pole mountable, with 35mm pole sockets

Integrated M10 rigging points for suspended applications



18" powered subwoofer

1020W Class-D amplifiers

Maximum 136dB SPL (peak)

Frequency Range 32Hz-120Hz

D-XSUB Bass Processing

Cardioid Mode for low frequency control

Compact and lightweight (49.7kg / 110lbs)

Durable Plywood enclosure with LINE-X® finish

35mm and M20 Dual Pole Socket

Optional Speaker Cover (SPCVR-18S01)



12" 2-way powered loudspeaker

1000W Class-D amplifiers

Maximum 131dB SPL (peak)

D-CONTOUR multi band dynamic processor

Easy-to-use Onboard 2-Channel Mixer

Compact and lightweight (15.8kg / 34.8lbs) with durable Plastic enchosures

Floor monitor angle

35mm Pole Mount Socket

Integrated M8 rigging points for suspended applications

Optional Brackets (BBS251, BCS251, BWS215-300, BWS251-400) and Speaker Cover (SPCVR-1201)
