Outdoor Events / Assemblies / Public Addresses [Mid-size]
A compact, user-friendly sound system that is ideal for speech or music playback at mid-sized outdoor events or assemblies, and supports live streaming. Ideal for audiences of up to 300.
- USB audio interface function on the mixer supports live streaming suitable for hybrid events. [Mixing console MG12XU]
- An effective, easily configured system consisting of 4x passive speakers mounted on speaker stands and requiring few cables, a power amplifier and a mixing console.
- Versatile mixing console with max. 6 mic/12 line input capability for a wide range of events. [Mixing console MG12XU]
- 1,200W x 2 (4Ω) power amplifier equipped with a Configuration Wizard and speaker presets which optimize the speaker settings and match the system setup. [Power amplifier PX10]
- Powerful high-definition sound delivered by passive loudspeakers equipped with customized transducers that feature a highly responsive 15" woofer and a precise 3" compression driver. [Loudspeaker CZR15]
| Category | Model Name | Qty |
|---|---|---|
| Mixing Console | MG12XU | 1 |
| Power Amplifier | PX10 | 1 |
| Main Speaker | CZR15 (Loudspeaker) | 4 |
| Subwoofer | - | - |
| Monitor Speaker | - | - |

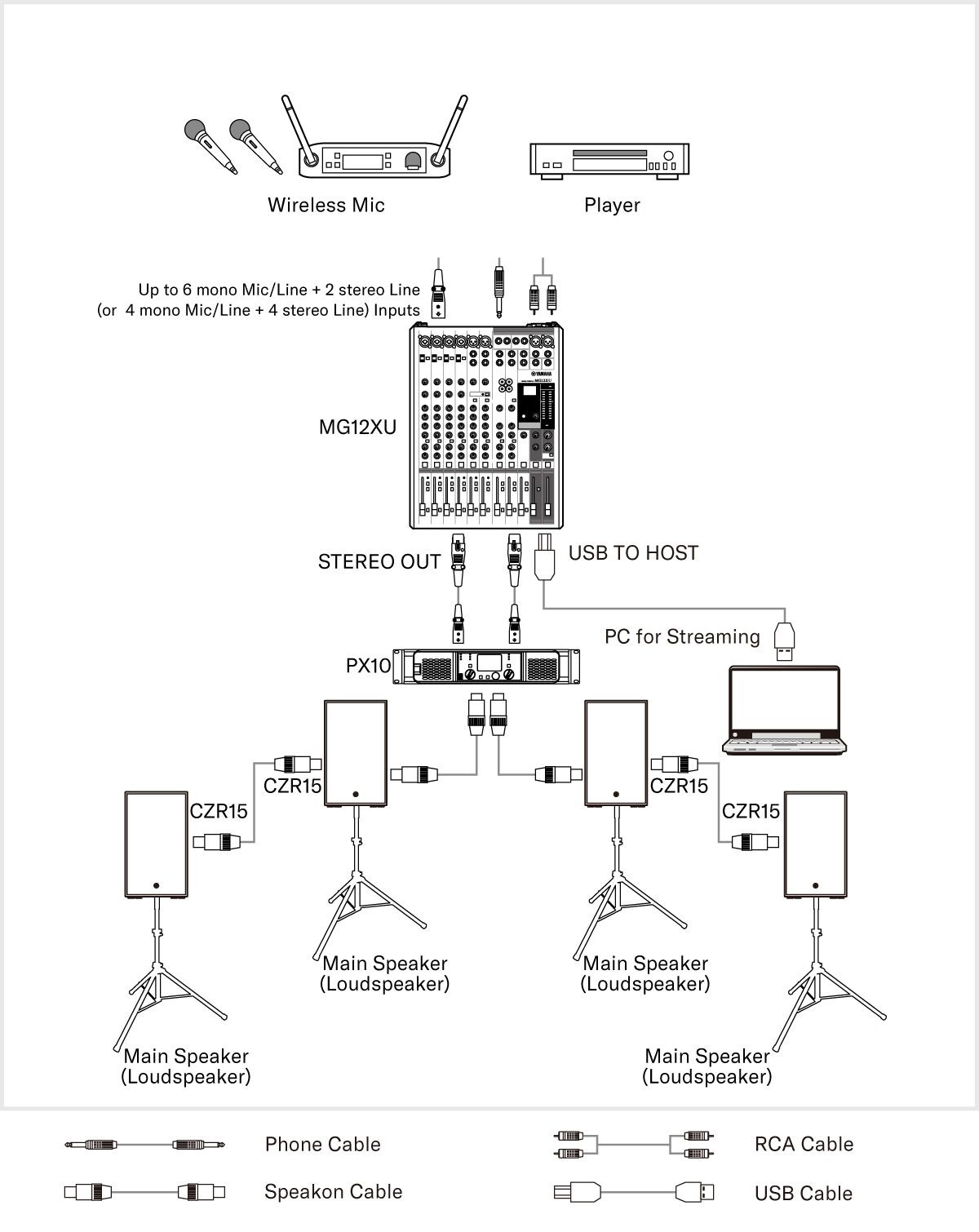

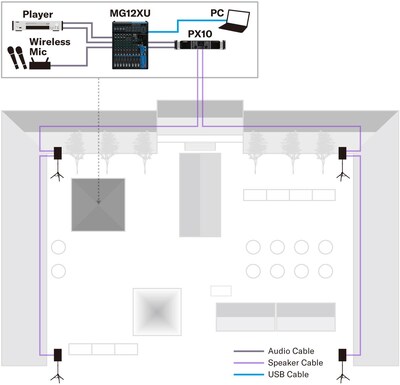

System
Tips

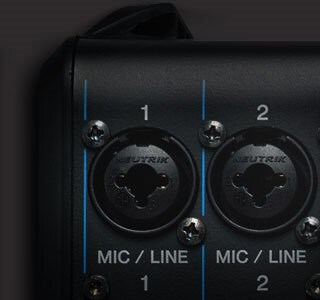

A variety of input / output connectors
MG12XU features high-quality Neutrik™ balanced XLR connectors on mono microphone/line channels and XLR equipped stereo channels. Each of the mono inputs is equipped with combo jack and accepts both MIC and LINE level signals. Two of the stereo inputs are equipped with XLR and two phone connectors with XLR accepting MIC level signals while two phone connectors accepting LINE level signals and can be used either mono or stereo.

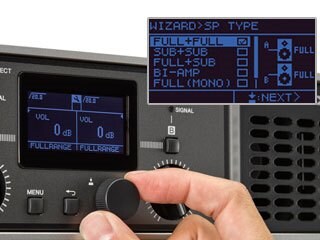

Speaker Processor and Preset
With using Config wizard the best optimized setup for each speaker necomes possible. Customers only choose filter and crossover for their each speaker system set up and connections. If using with Yamaha speakers, ready never before.
Functional Speaker Cover
The functional speaker covers that protect your speakers from unfavorable weather conditions during outdoor performances, dusty and dirty warehouse storage, or the rigors of equipment transport on the road.
*NOTE: The covers do NOT guarantee water-drip protection.
Products Information
MG12XU
12-Channel Mixing Console
- Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo)
- 2 GROUP Buses + 1 Stereo Bus / 2 AUX (incl. FX)
- 1-Knob compressors
- High-grade effects: SPX with 24 programs
- 24-bit / 192kHz 2in / 2out USB Audio functions
- MG REC/PLAY, Cubase AI and Cubasis LE available
PX10
The versatile PX series power amplifiers lineup combines intelligent processing with high output power to meet the requirements of a vast range of sound reinforcement environments.
- 2x 1,000 W at 8 Ω
- 2x 1,200 W at 4 Ω
- Newly developed Class-D amplifier engine with custom LSI
- Flexible onboard PEQ, crossover, filters, delay, and limiter functions
- Yamaha speaker presets
- Utilities for safe, secure operation
CZR15
2-way loudspeaker with a 2” HF and a 15" LF
- Features Yamaha's own Wide Dispersion CD Waveguide Horn
- High power 800 W(PGM) power handling and Bi-amp capable
- Floor monitoring setting enables mirroring configuration
- Lightweight yet very durable plywood cabinet with premium graded Polyurea coating
- Dual-angle pole socket
- Optional speaker cover (SPCVR-DZR15)
- Rotatable horn and variety of U-bracket options (UB-DZR15H/V) for rigging allow for very flexible setup and speaker placement
- Durable Black or white finish
